10th Gen Intel Core i7 Industrial Mini PC with 128G mSATA SSD and 8G DDR4 RAM for Rugged Applications

브랜드 이름:	helor
MOQ:	1

자세한 정보

제품 설명

자세한 정보

원래 장소:

광동, 중국

CPU 모델:

i7-7567U 프로세서

CPU 캐시:

4M 캐시

CPU 속도:

최대 4.00GHz

메모리 유형:

DDR4 260핀 SODIMM

맥스 메모리:

32GB(16GB x2)

스토리지 옵션:

128G mSATA SSD/ M.2 NVME SSD 2280/ 2.5인치 HDD/SSD

란 포트:

2*기가비트 LAN

USB 포트:

4*USB3.0, 2*USB2.0

무선 연결:

와이파이/블루투스/3G/4G 모뎀

통신 포트:

6*RS232/RS485/4RS422(선택)

치수:

249 x 150 x 86mm

무게:

3.5kg

작동 온도:

-20 ℃ ~ 65 ℃

전력 소비:

15-28W

디스플레이 해상도:

VGA: 1920×1080@60Hz, HD: 4096×2304@60Hz

강조하다:

10th Gen Intel Core i7 Industrial Mini PC

128G mSATA SSD Industrial PC

8G DDR4 RAM Industrial Mini PC

제품 설명

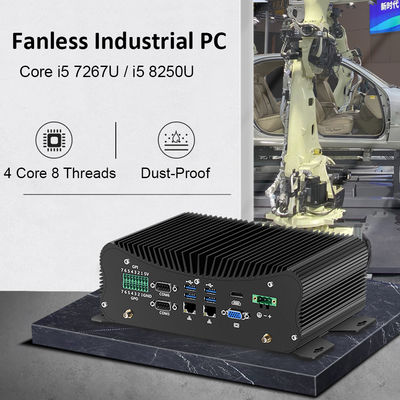

Linux IOT Fanless Rugged 10th Gen Industrial Computer

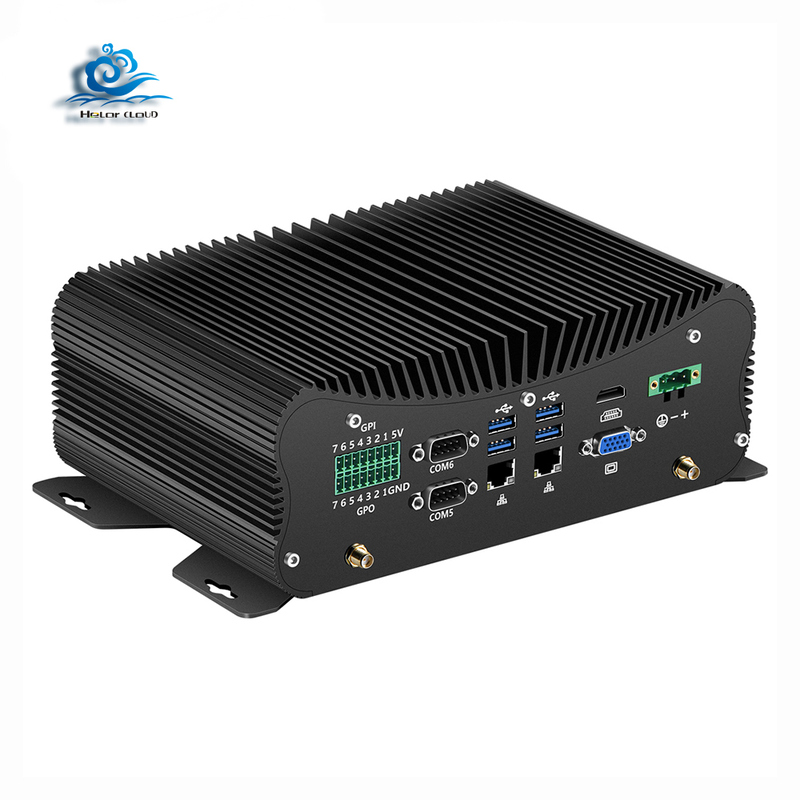

The HLY H45G is a rugged industrial PC designed to withstand demanding environments with protection against dust, liquids, extreme temperatures, shock, and vibration. Its elegant brushed aluminum design combines durability with modern aesthetics.

Key Features

Fanless design with aluminum alloy enclosure for dustproof and moisture-proof operation

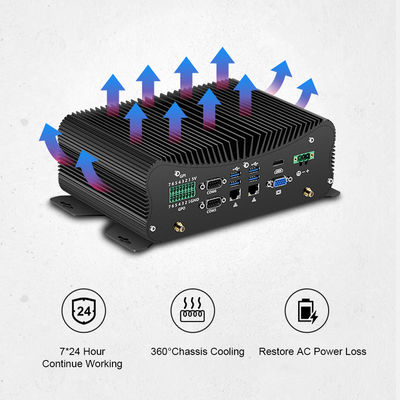

Supports 7×24 continuous operation with AC power loss recovery function
Intel Core i3/i5/i7 10th Gen processors with DDR4 RAM support up to 32GB

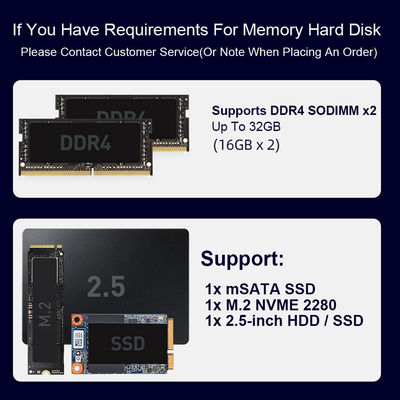

Multiple storage options: M.2 NVME, mSATA, and 2.5" HDD/SSD
Dual Ethernet ports with Wake-on-LAN and PXE Boot support
Comprehensive I/O including USB 3.0/2.0, RS232/RS485, GPIO, and display ports
Supports Windows 10/8/7 and Linux operating systems

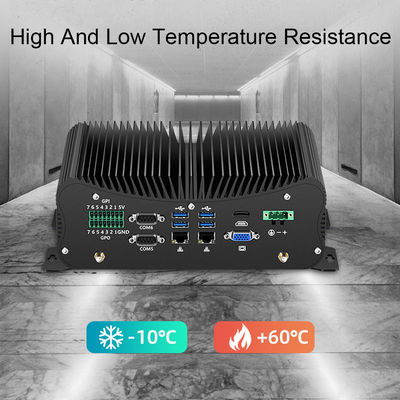

Wide operating temperature range: -20°C to 65°C

Technical Specifications

Model: H26A

CPU Options: Intel Core i5 4200U, i5 8365U, i5 10210U, i7 7567U, i7 10510U

Memory: 2×DDR4 SODIMM slots, up to 32GB

Display: VGA (1920×1080) + HD (4096×2304), dual display support

Networking: 2×Gigabit Ethernet, WiFi 802.11b/g/n

I/O Ports: 4×USB 3.0, 2×USB 2.0, 6×COM (RS232/RS485/RS422), GPIO, LPT, audio

Storage: M.2 NVME 2280, mSATA, 2.5" SATA SSD/HDD

Power: DC 9-36V, 5A/60W (15-28W typical)

Dimensions: 249×150×86mm, 3.5kg

Packaging & Shipping

Standard export carton includes: industrial PC, user manual, VESA mount, power adapter, SATA cables, and WiFi antenna. Multiple shipping options available including DHL, FedEx, Aramex, and postal services.

Frequently Asked Questions

1. How is the performance of this small computer?

Our mini PC uses latest generation Intel CPUs, providing excellent performance for office software, design applications, web browsing, and multimedia. It runs smoothly for small to medium computer games.

2. What are the advantages of fanless design?

Fanless operation means zero noise and no dust accumulation. The aluminum casing effectively dissipates heat while protecting internal components.

3. Can I add additional storage?

Yes, the system supports multiple storage options including M.2 NVME, mSATA, and 2.5" HDD/SSD simultaneously.

4. What display sizes does it support?

The PC supports up to 4K resolution and works perfectly with large displays and projectors up to 150 inches.

5. How is heat management handled?

The aluminum alloy casing and efficient thermal design keep temperatures well within safe operating limits even during continuous 24/7 operation.
