Created with Pixso. Industrial PC Fanless Mini Computer with Windows 10/Linux Support Compact Aluminum Shell Design 133mm*125mm*40mm

Industrial PC Fanless Mini Computer with Windows 10/Linux Support Compact Aluminum Shell Design 133mm*125mm*40mm

브랜드 이름: HLY
모델 번호: H30G
MOQ: 2
가격: US$68.40-72
자세한 정보
원래 장소:
중국
프로세서 유형:
인텔 셀러론
CPU 옵션:
J1800/J1900/N2815/N2930/J2900
GPU:
인텔 H-D 그래픽
비디오 메모리:
256MB
램 유형:
DDR3L 1066/1333/1600MHz,1.35V
맥스 램:
8GB
스토리지 옵션:
1x mSATA + 1x 2.5' SSD/HDD
포트:
1xUSB3.0, 3xUSB2.0, 1xVGA, 1xH-D, 2xCOM, 2xLAN
랜 속도:
10/100/1000 Mbps
VGA 해상도:
2650×1600@60Hz
HD 해상도:
1920×1080@60Hz
전원 입력:
DC 12V 3A/36W
작동 온도:
-20-65℃
치수:
133mm*125mm*40mm
재료:
알루미늄 쉘
강조하다:

Windows 10/Linux Compatible Industrial PC

,

Compact Size Fanless Mini Computer

,

Aluminum Shell HTPC Micro Computer

제품 설명
Ce-leron J1900 Desktop PC Pen-itum 2 Com Rs232 2Lan Nics H d Vga 4 Usb Win10 Linux Fanless HTPC Micro Computer
Industrial PC Fanless Mini Computer with Windows 10/Linux Support Compact Aluminum Shell Design 133mm*125mm*40mm 0 Industrial PC Fanless Mini Computer with Windows 10/Linux Support Compact Aluminum Shell Design 133mm*125mm*40mm 1 Industrial PC Fanless Mini Computer with Windows 10/Linux Support Compact Aluminum Shell Design 133mm*125mm*40mm 2
Specifications
Processor
  • Intel Celeron Processor J1800, 1M Cache, up to 2.58 GHz, 2 Core 2 threads, TDP:10W
  • Intel Celeron Processor J1900, 2M Cache, up to 2.42 GHz, 4 Core 4 threads, TDP:10W
  • Intel Celeron Processor N2815, 1M Cache, up to 2.13 GHz, 2 Cores 2 threads, TDP:7.5W
  • Intel Celeron Processor N2930, 2M Cache, up to 2.16 GHz, 4 Core 4 threads, TDP:7.5W
  • Intel Pentium Processor J2900, 2M Cache, up to 2.67 GHz, 4 Cores 4 threads, TDP:10W
Display
  • GPU: Intel HD Graphics
  • VGA: Max Resolution 2650×1600@60Hz
  • HD: Max Resolution 1920×1080@60Hz
  • Dual display: VGA + HD, Support for Synchronous or Asynchronous Display
Memory
  • 2GB/4GB/8GB DDR3L 1066/1333/1600MHz 1.35V
  • 1*204-pins SO-DIMM
  • Maximum capacity: 8G
Hard Disk
  • SSD: 1*Full Height mSATA socket, 16GB/30GB/60GB/120GB/240GB/500GB mSATA SSD
  • HDD: Support SATA 2.5"HDD
Support OS
  • Official Win10/8/7/Linux/ubuntu/CENTOS, etc.
Notice: we pre-install Win7/8/10 OS for testing only. If you need legal genuine Win7/8/10 OS or other OS like Linux, Ubuntu, Pfsense..., please contact us in time.

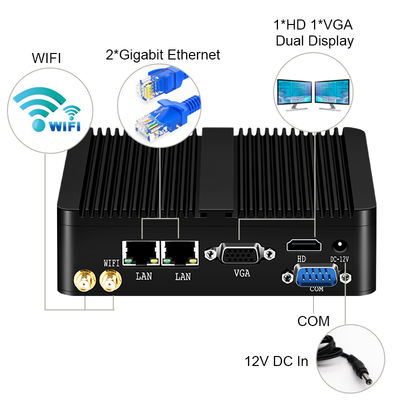

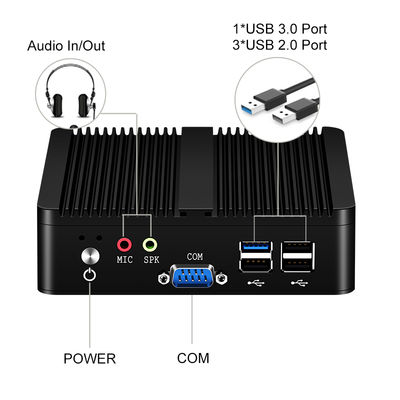

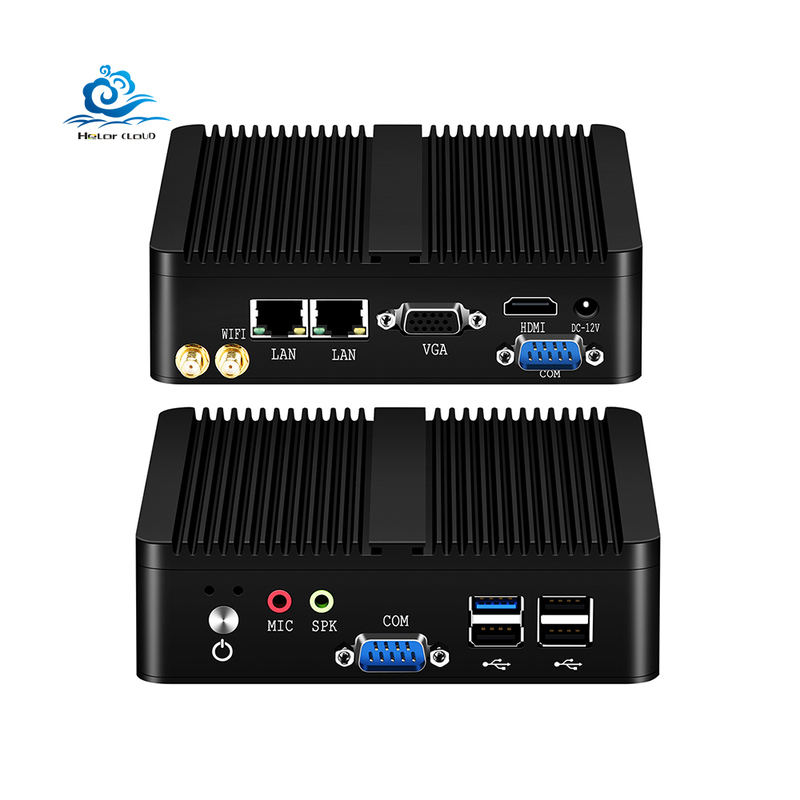

Port
  • 3xUSB2.0
  • 1xUSB3.0
  • 2xRS232 COM
  • 2xLAN, 10/100/1000/ Mbps Realtek 8111F, support wake on lan
  • 1xVGA
  • 1xHD
  • 1xMIC SPK
Audio Main system: Adopt Realtek ALC662 audio control chip, support dual channel, stereo, Line out
Extension 1× Half Height Size Mini PCIE
Power Requirement DC 12V 3A/36W(AC TO DC, 100~240V)
Working Environment
  • Operating Temperature: -20-65℃
  • Storage Temperature: 15℃-35℃
  • Relative Humidity: 5%~95% (non-condensing)

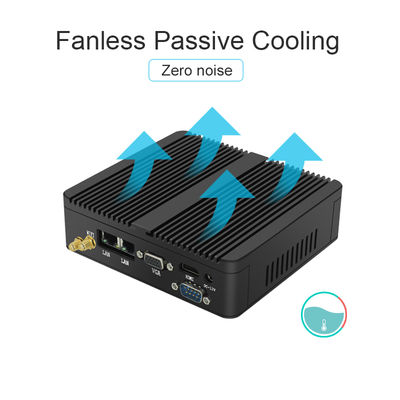

Structure Aluminum Shell, Fanless
Dimension 133mm*125mm*40mm
Package Contents
  • 1 x Mini PC
  • 1 x User manual
  • 1 x Power adapter

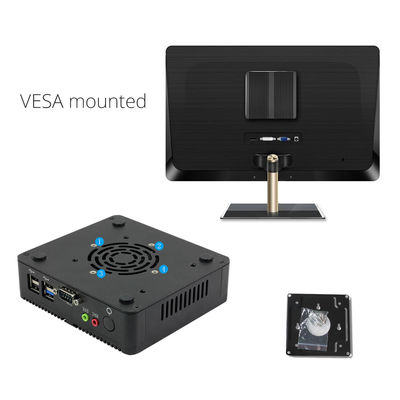

  • 1 x VESE mount
  • 1 x SATA data and power cable
  • 2 x Wifi Antenna (Except Barebone)
Notice: Barebone is without wifi. If you need wifi module, please kindly contact us.
Company Profile

Shenzhen Helor Cloud Computer Co,. Ltd (HLY), located in Shenzhen, Guangdong and specialized in mini computer since 2013, has our own professional motherboard manufacturer. Developed more than 50 kinds of own products, applied in different fields for AI, office working, education, entertainment, advertising, transport, industrial, etc. Our mini pc had sold in more than 60 countries and regions, annual sales exceed one million units.

HLY carries the line of over 20 manufacturers of computer components, communications products and specialized electronics for automation control, thereby HLY can offer the leading edge device, the latest technological developments as well as best prices to our clients.

Industrial PC Fanless Mini Computer with Windows 10/Linux Support Compact Aluminum Shell Design 133mm*125mm*40mm 3 Industrial PC Fanless Mini Computer with Windows 10/Linux Support Compact Aluminum Shell Design 133mm*125mm*40mm 4

We have more than 100 employees. Experienced technical group, reliable and dedicated sales department and responsible production team constitute the backbone of our enterprise. Our well-selected components and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.

Our engineers are outstanding in their ability to analyze requirements and tailor a solution meeting all specifications, which allow us to research and development various sorts and varieties computer to fit the specific technical requirements of the customer. So ODM\OEM is highly welcome. From design, production and installation to excellent after-sales, HLY clients are assured of the highest level of quality and service.

Packaging & Shipping
Power adapter:

We have multiple specifications of power supplies, which are selected by default based on your shipping address. If you have special demands, please contact us in time.

EU, UK, US, AU, Brazil, etc.

Industrial PC Fanless Mini Computer with Windows 10/Linux Support Compact Aluminum Shell Design 133mm*125mm*40mm 5
Payment:

We are supporting L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.

Industrial PC Fanless Mini Computer with Windows 10/Linux Support Compact Aluminum Shell Design 133mm*125mm*40mm 6
Packaging:

We carefully wrapped the mini pc and the parts with a waterproof bag, then fix it in the inner carton box with a foam board. Put the inner box into the outer box, and then seal the outer box with tape.

Shipping Methods:

Shipping by DHL, FedEx, UPS, Aramex, post and Alibaba, and negotiation. (choose as you prefer)

FAQ
1. How about the warranty?

The first year we provide free repair service, the second year and the third year, free repair but we will charge for the parts that need to change.

2. Can I print my logo on your mini pc?

Yes, please provide your logo file, and we will confirm the design effect to you before production. We also doing OEM\ODM.

3. What is the MOQ?

We can sell one sample for your test.

4. How long the package will ready after I buy the mini pc?

It takes about three days for inspection and assembly. Generally, 10 units can be shipped in about 3 days, and 50 units can be shipped in about 8 days. More information please kindly check with us.

5. Are your mini pc in stock?

Yes, most of our models are in stock. You can confirm the inventory with us before placing your order.
