| 브랜드 이름: | Helor PC |
| 모델 번호: | x56 N100 |
| MOQ: | 1 조각 |
| 가격: | $120.8-$190.3, Negotiable |
| 배달 시간: | 7-15 근무일 |
| 지불 조건: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
This industrial mini PC is powered by an Intel N100 processor and features I226-V GbE LAN ports with Wake-on-LAN, dual COM ports (COM1: TTL232; COM2: 232/485) plus LVDS. The system includes DDR4 SODIMM ×1 (max support 16GB), mSATA/SATA storage, and various I/O interfaces such as HDMI2.0, DP1.4, 4USB3.0, 4USB2.0, 1COM1-4 (Phoenix terminal, RS485), 1COM2 (DB9/RS232), 1POWER BUTTON, and 1DC12V. Expansion options include 1mSATA, 1SATA3.0, and 1*M.2 slot (supporting WiFi/Bluetooth module). The compact alloy design measures 145×100mm, weighs 1.5KG, and supports both desktop and wall-mount installations. It operates at a temperature range of -30°C to +70°C (storage temperature: -10°C to +60°C) and can handle 5% - 95% humidity (non-condensing). Compatible with Windows 10/11 and Linux, it is powered by DC 12V/5A (adapter included). This mini PC is ideal for reliable industrial applications.
| Processor | Intel N100 |
| Memory | DDR4 SODIMM *1, max support 16GB |
| Storage | 1*MSATA,1*SATA3.0 |
| Network | 4*INTEL I225V/I226V 2.5G network cards (support network redundancy, network boot) |
This setup, powered by an Intel 12th Generation processor (4 cores, 4 threads, 1.8GHz base frequency, up to 3.4GHz turbo boost), offers strong performance, low power usage, and improved compatibility. It's perfect for industrial uses like machine vision, facial recognition, intelligent robotics, and industrial automation.
Intel N100 with Four LAN Dual COM Industrial Mini PC Application:
Ideal for industrial sites, entertainment venues, commercial establishments, public areas, financial institutions, monitoring systems, express pick-up lockers, and digital signage.

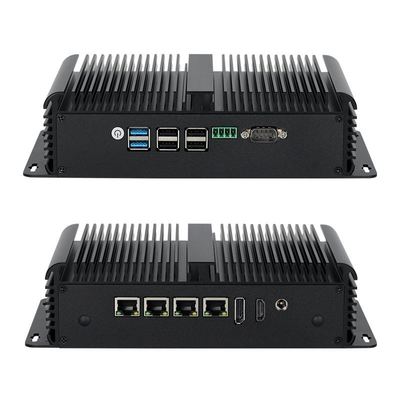

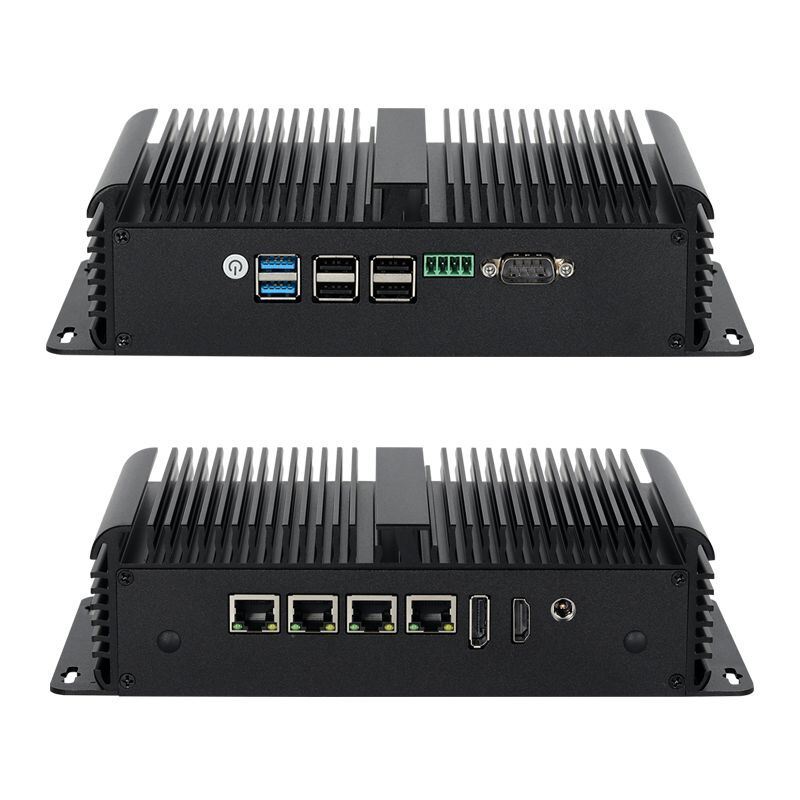

This industrial PC boasts a well-organized interface layout. The front panel features a switch button, USB 3.0, USB 2.0, RS485 serial port, and RS232 serial port. The rear panel provides four 2.5G Ethernet ports, a DP port, an HDMI port, and a power interface. These connections enable seamless integration with industrial devices, peripherals, and networks.
화면
화면
화면
화면
화면
화면
|
|
