| 브랜드 이름: | Helor PC |
| 모델 번호: | x26g 인텔 코어 i7-6500U |
| MOQ: | 1 조각 |
| 가격: | $150-$248, Negotiable |
| 배달 시간: | 7-15 근무일 |
| 지불 조건: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

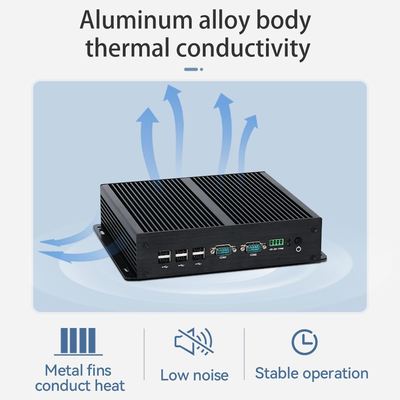

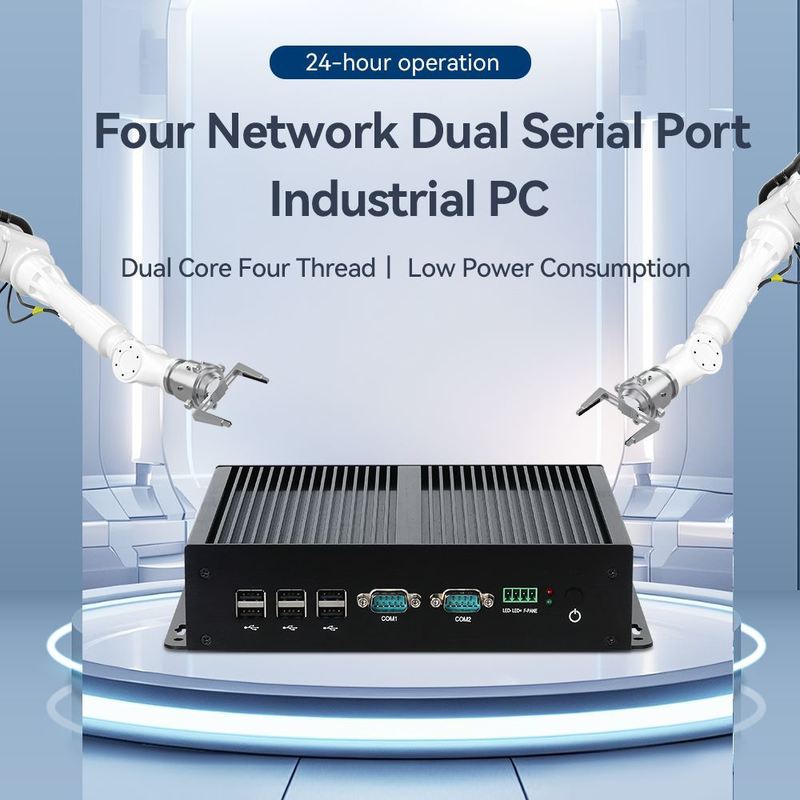

This mini PC, powered by an Intel Core i7-6500U (dual-core, quad-thread, up to 3.1GHz turbo), features 4 Intel i210 GbE LAN ports (with Wake-on-LAN support) and 2 switchable COM232 ports. It supports up to 32GB DDR4, M.2 NVMe and SATA storage, multiple USB/HDMI/audio interfaces, and M.2 expansion for wireless connectivity. The compact design (235×195×52mm, 1.8kg) with an aluminum body is both desktop and wall-mountable, and operates in temperatures from -15℃ to +60℃ (0% to 95% humidity). Compatible with Windows and Linux, it can be powered by DC 12-24V or 4 PIN ATX (12V/5A power supply included).
| Processor | Intel Core I7-6500U |
| Memory | DDR4 SODIMM *2, Max. Support 32GB (16GB per slot max) |
| Storage | 1*M.2 NVME 2280 + 1*SATA 2.5 inch |
| Network | 4*LAN<4*Intel i210 10/100/1000 Base - Tx GbE Compatible> , Wake - on - LAN supported |
| Power Input | DC 12 - 24V or 4 PIN ATX, 12V/5A Power Supply included by default |
| Operating Temperature | -15℃ to +60℃ |
| System Support | Windows 7/8/10/11/Linux |
Equipped with Intel Core i7-6500U processor (dual-core, 4-thread, up to 3.1GHz turbo frequency, 4MB cache, 15W power consumption). Higher configuration meets more industrial needs, applicable to machine vision, face recognition, intelligent robots, industrial automation and other scenarios.
Intel Core I7-6500U Industrial Mini PC Application:
Ideal for industrial automation, commercial vending, digital signage, CNC tools, production control, multimedia education, access systems, self-service inquiries, and parcel lockers.

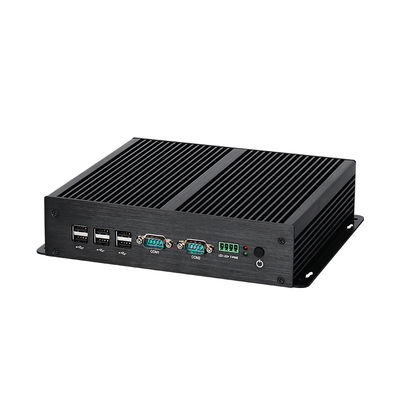

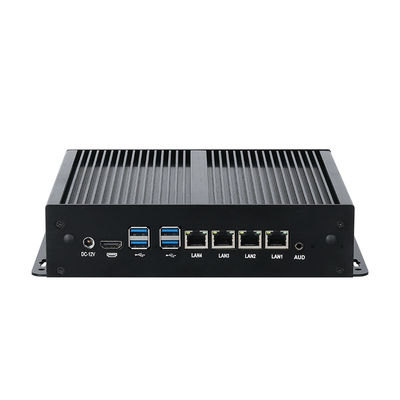

This industrial PC features a well-designed interface layout. The rear panel includes 6 USB 2.0 ports, 2 COM ports, a switch/LED terminal, and a power switch on one side. On the other side, it offers a power interface, HDMI port, 4 USB 3.0 ports, 4 Ethernet ports, and an audio interface. These connections facilitate flexible integration with industrial devices, peripherals, and networks.
화면
화면
화면
화면
화면
화면
|
