| 브랜드 이름: | Helor PC |
| 모델 번호: | X103 RK3568 |
| MOQ: | 1 조각 |
| 가격: | $50-$150, Negotiable |
| 배달 시간: | 7-15 근무일 |
| 지불 조건: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
This industrial mini PC features the Rockchip RK3568 quad-core 64-bit processor (up to 2.0GHz), balancing high performance with low power consumption. It supports up to 8GB of DDR4 memory and offers expandable storage (eMMC up to 256GB + SATA3.0). The device integrates an ARM G52 2EE GPU and a 1.0TOPS NPU for efficient graphics and AI processing. Running Android 11, it operates within a temperature range of -10°C to 70°C, making it ideal for industrial automation and edge computing.
| GPU | Rockchip RK3568 Quad-core 64-bit Processor, main frequency up to 2.0GHz |
| CPU | ARM G52 2EE GPU supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, with built-in high-performance 2D acceleration hardware |
| NPU | Built-in Neural Network Processor NPU, 1.0TOPS @INT8 performance. Supports models such as Caffe/Mxnet/TensorFlow/TF Lite/ONNX/Darknet. Provides AI development tools: supports fast model conversion. |
| Memory | DDR4 2GB (4GB/8GB optional, up to 8GB supported) |
| Operating System | Android 11.0 |

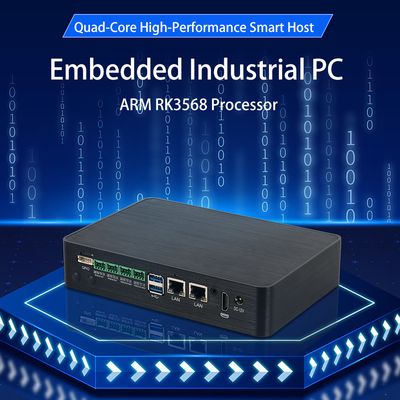

This industrial mini PC features the ARM RK3568 processor, a quad-core 64-bit chip running at up to 2.0GHz, manufactured using a 22nm process. Engineered for a balance of high performance and low power consumption, it is ideal for industrial automation and edge computing. The integrated ARM G52 2EE GPU supports OpenGL ES, OpenCL, and Vulkan, enabling efficient management of industrial HMI displays and basic GPU-assisted data analysis. Additionally, the built-in 1.0TOPS @INT8 NPU boosts AI capabilities, ensuring compatibility with popular AI frameworks such as Caffe, Mxnet, and TensorFlow.
The ARM DDR4 Industrial Mini PC, known for its balanced performance and reliability, is widely used in various settings. These include industrial premises for production control, entertainment venues for multimedia, commercial institutions for POS/kiosks, public places for information terminals, financial institutions for ATMs, monitoring systems for video analytics, express pick-up lockers for parcel management, and digital signage for content display, thus meeting a broad range of industry needs.

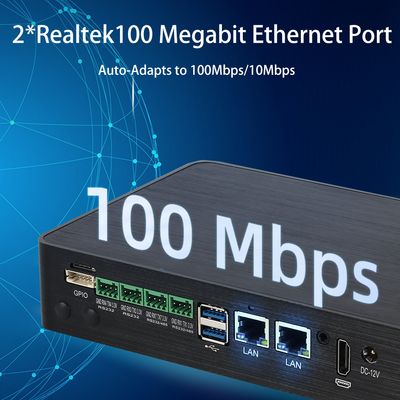

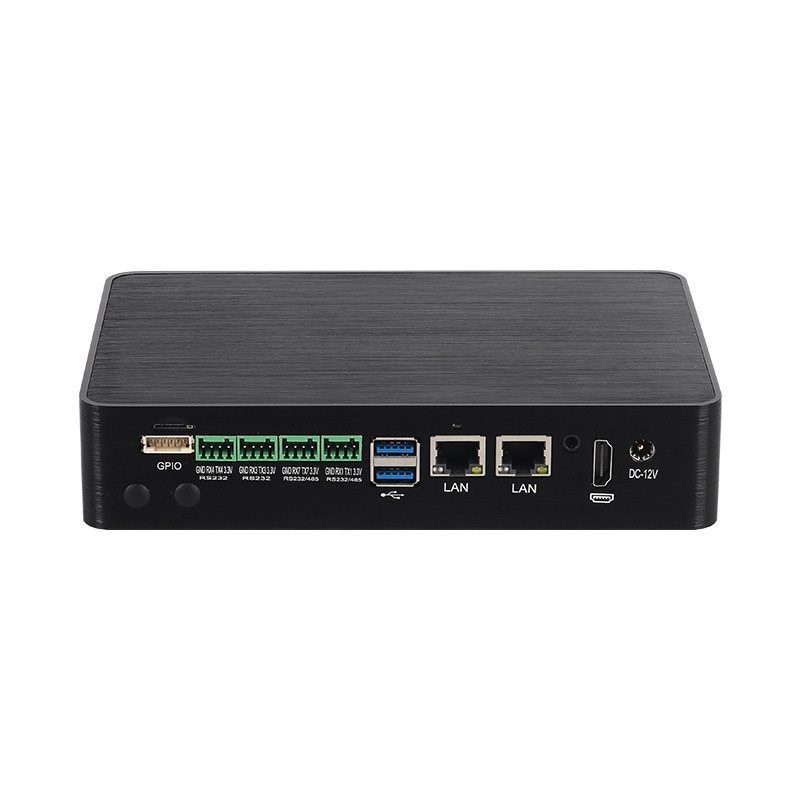

This dual-network 2-USB industrial mini PC features a variety of interfaces: dual LAN ports for network redundancy, USB 3.0 for high-speed device connections, HDMI for HD video output, audio I/O for sound tasks, a SIM slot for cellular connectivity, RS232/RS485 (selectable) and GPIO for industrial control, along with a power interface and switch. It meets the needs of industrial automation, multimedia, and remote communication.
화면
화면
화면
화면
화면
화면
|
|
| 브랜드 이름: | Helor PC |
| 모델 번호: | X103 RK3568 |
| MOQ: | 1 조각 |
| 가격: | $50-$150, Negotiable |
| 포장에 대한 세부 사항: | 상자 상자 |
| 지불 조건: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
This industrial mini PC features the Rockchip RK3568 quad-core 64-bit processor (up to 2.0GHz), balancing high performance with low power consumption. It supports up to 8GB of DDR4 memory and offers expandable storage (eMMC up to 256GB + SATA3.0). The device integrates an ARM G52 2EE GPU and a 1.0TOPS NPU for efficient graphics and AI processing. Running Android 11, it operates within a temperature range of -10°C to 70°C, making it ideal for industrial automation and edge computing.
| GPU | Rockchip RK3568 Quad-core 64-bit Processor, main frequency up to 2.0GHz |
| CPU | ARM G52 2EE GPU supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, with built-in high-performance 2D acceleration hardware |
| NPU | Built-in Neural Network Processor NPU, 1.0TOPS @INT8 performance. Supports models such as Caffe/Mxnet/TensorFlow/TF Lite/ONNX/Darknet. Provides AI development tools: supports fast model conversion. |
| Memory | DDR4 2GB (4GB/8GB optional, up to 8GB supported) |
| Operating System | Android 11.0 |
This industrial mini PC features the ARM RK3568 processor, a quad-core 64-bit chip running at up to 2.0GHz, manufactured using a 22nm process. Engineered for a balance of high performance and low power consumption, it is ideal for industrial automation and edge computing. The integrated ARM G52 2EE GPU supports OpenGL ES, OpenCL, and Vulkan, enabling efficient management of industrial HMI displays and basic GPU-assisted data analysis. Additionally, the built-in 1.0TOPS @INT8 NPU boosts AI capabilities, ensuring compatibility with popular AI frameworks such as Caffe, Mxnet, and TensorFlow.
The ARM DDR4 Industrial Mini PC, known for its balanced performance and reliability, is widely used in various settings. These include industrial premises for production control, entertainment venues for multimedia, commercial institutions for POS/kiosks, public places for information terminals, financial institutions for ATMs, monitoring systems for video analytics, express pick-up lockers for parcel management, and digital signage for content display, thus meeting a broad range of industry needs.
This dual-network 2-USB industrial mini PC features a variety of interfaces: dual LAN ports for network redundancy, USB 3.0 for high-speed device connections, HDMI for HD video output, audio I/O for sound tasks, a SIM slot for cellular connectivity, RS232/RS485 (selectable) and GPIO for industrial control, along with a power interface and switch. It meets the needs of industrial automation, multimedia, and remote communication.
