AMD Ryzen R3 4300U Processor Mini Pc With 1 RJ45 Gigabit Ethernet Port 2 HD-MI 1 Type-C For Home Entertainment Business Office And Gaming

브랜드 이름:	Helor PC
모델 번호:	X72
MOQ:	1개 조각
가격:	122.62usd
배달 시간:	근무일 기준 15일
지불 조건:	L/C,D/A,D/P,T/T,웨스턴 유니온

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

Ce, Rohs, Sgs

CPU:

AMD 라이젠 R3 4300U

LED 표시기:

전원(흰색)/Lan(녹색/주황색)

오디오:

1*3.5mm 콤보 오디오 잭

냉각:

전체가 구리로 제작된 저소음 냉각 팬

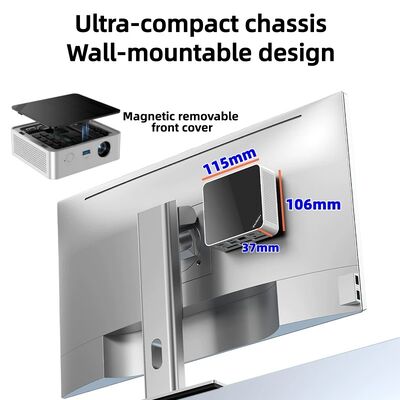

치수:

115*106*37mm

무게:

대략. 310g

재료:

친환경 PC+ABS 플라스틱 섀시

다른:

1*전원 버튼, 1*보안 잠금 장치, Wake-on-LAN 및 AC 복원 시 전원 켜기 지원

포장 세부 사항:

판지 상자

공급 능력:

50000 조각/월

제품 설명

AMD Ryzen R3 4300U Processor Mini Pc With 1 RJ45 Gigabit Ethernet Port
2 HD-MI 1 Type-C For Home Entertainment Business Office And Gaming

Product Introduction of Home Office Mini Pc

This high-performance Ryzen mini PC is a compact mini host equipped with an adaptive gigabit high-speed Ethernet port, dual-channel DDR4 3200MHz memory with

2*SO-DIMM slots, dual full-size M.2 storage slots and abundant I/O ports. It is tailored for daily office work, multimedia audio & video playback, light graphic design and

small industrial control terminal scenarios. Built-in adaptive gigabit RJ45 Ethernet port meets the demands of daily office file transmission, audio & video streaming, and

data exchange between small devices. It features triple video outputs including 2*HD-MI 2.0 ports and full-function 1*Type-C port, supporting up to 4K@60Hz resolution.

The device enables simultaneous triple-screen display or independent extended displays for three screens, ideal for multi-station office work, split-screen monitoring, and

multi-window synchronous operation for light design tasks.

Product Specifications of Home Office Mini Pc

CPU	AMD Ryzen R3 4300U
GPU	AMD Radeon Graphics, (up to 1400MHz)
Memory	2DDR4 3200MHz (Dual-channel, 2SO-DIMM,Max 32GB)
Storage	4M.2 2280 PCIE3.0 &1SATA3 (Supports up to4TB) 4M.2 2242 PCIE3.0 &1SATA3 (Supports up to2TB)

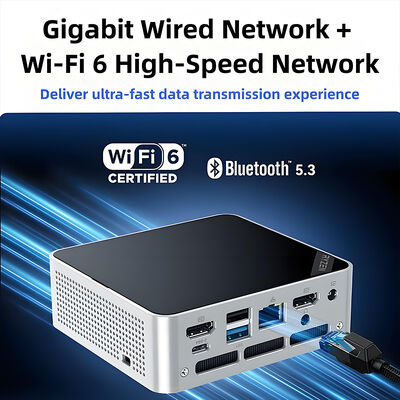

Network	Wireless Wi-Fi 6/Bluetooth 5.3 (RTL9851), Gigabit Wired Ethernet Port
Front Interfaces	1Power button, 2USB 3.2 Gen 2 (10Gbps)
Rear Interfaces	1Kensington lock slot, 1Full-function Type-C (USB Gen2 + PD power delivery + DP 4K@60Hz), 2HD-MI 2.0 (4K@60Hz), 1USB 3.2 Gen 2 (10Gbps), 1USB 2.0, 1Gigabit RJ45 Ethernet port, 1DC power input, 13.5mm combo audio jack for headset & microphone.
Cooling System	All-copper silent cooling fan
Power Input	19V/3.42A
OS Support	Win10, Win11

CPU Performance of Home Office Mini Pc

Powered by AMD Ryzen 3 4300U high-efficiency low-power processor with 4 cores and 4 threads. It runs at a base frequency of 2.7GHz with a maximum boost

frequency of 4.7GHz. The low-power design delivers an excellent balance of performance and energy efficiency. Integrated AMD Radeon™ Graphics support dual HD

display output. Multi-screen monitoring and digital signage requirements can be fulfilled without a dedicated discrete graphics card. It is a perfect choice for industrial

control, embedded systems and light office users who require low power consumption, multi-screen display and long-term stable operation.

Application Scenarios of Home Office Mini Pc

This mini desktop PC fits a wide range of multi-functional usage scenarios, including home & office use, design & study, gaming and home theater streaming to satisfy

diverse demands.

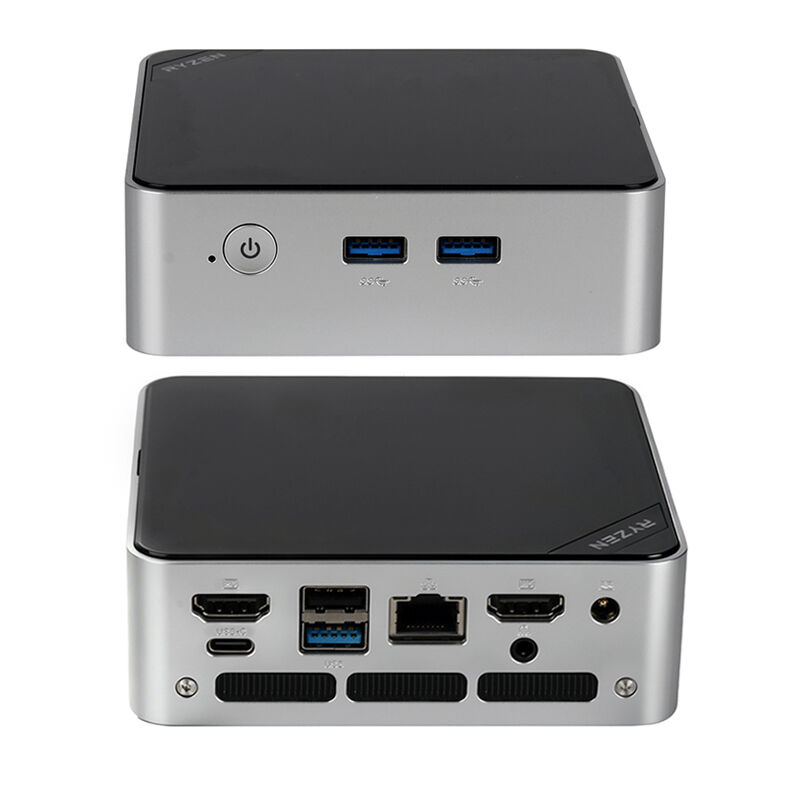

Port Description of Home Office Mini Pc

This micro computer comes with a full range of comprehensive I/O ports. Front ports: 1*Power button, 2*USB 3.2 Gen 2 (10Gbps); Rear ports: 1*Kensington lock slot,

1*Full-function Type-C (USB Gen2 + PD power delivery + DP 4K@60Hz), 2*HD-MI 2.0 (4K@60Hz), 1*USB 3.2 Gen 2 (10Gbps), 1*USB 2.0, 1*Gigabit RJ45 Ethernet

port, 1*DC power input, 1*3.5mm combo audio jack for headset & microphone.

Internal Structure Display of Home Office Mini Pc

The whole machine adopts a split modular internal layout with neatly divided hardware zones.
