| 브랜드 이름: | Helor PC |
| 모델 번호: | x31 i7 4500u |
| MOQ: | 1 조각 |
| 가격: | $134.1-$224.7, Negotiable |
| 배달 시간: | 7-15 근무일 |
| 지불 조건: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |

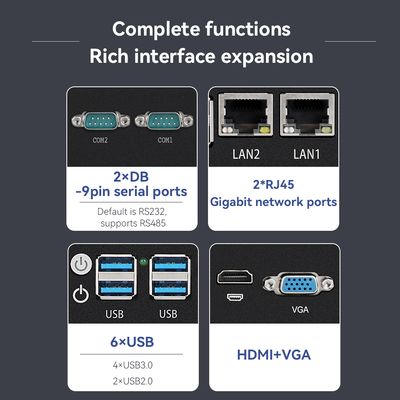

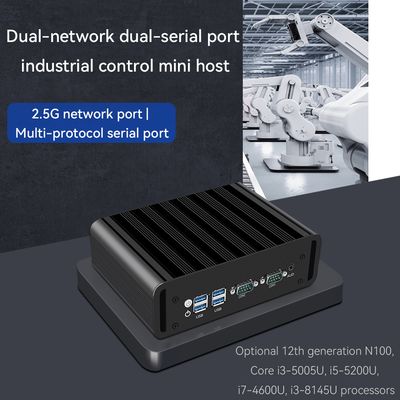

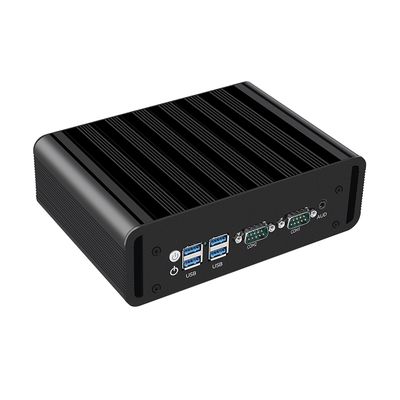

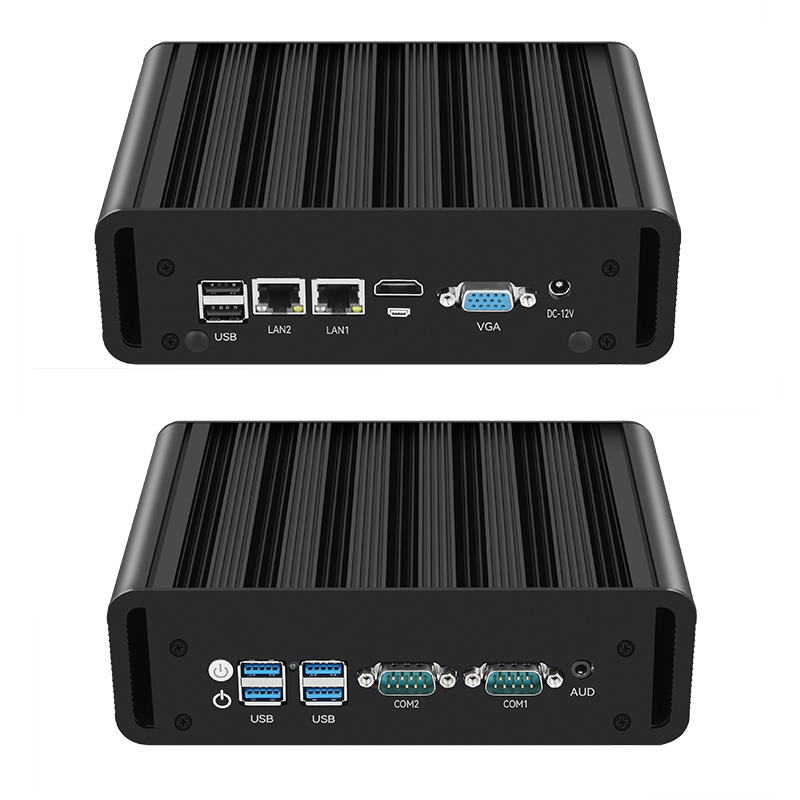

The industrial mini PC features an Intel Core i5 - 5200U processor. It has one 204 - pin DDR3 SO - DIMM slot (up to 8GB), one mPCIe slot (for WIFI/4G), and one mSATA + one 12 - pin SATA for storage. It includes dual LAN ports, six COM ports, and six USB ports (4 USB 3.0, 2 USB 2.0). The device supports VGA and HDMI for dual - screen sync, an ALC897 audio codec, and Realtek 8111H Gigabit NICs. Powered by DC4 - pin ATX, it operates in temperatures from 0°C to 20°C and humidity from 5% - 95%, supporting Windows 7/10 and Linux. It has 2 cores, 4 processing threads, and a turbo frequency of 2.7GHz.
| Processor | Compatible with Intel Celeron, Pentium, Core i3/i5/i7 Haswell/Broadwell series processors |
| Memory | 1×SO - DIMM memory slot, supporting single - channel 1600/1333MHz DDR3L 1.35V memory, maximum support 8GB |
| Size | 120mm × 120mm |
| Network | 2×Realtek RTL8111H Gigabit network cards (1 network wake - on - lan), support network wake - up/PXE |
| Storage |
1×7pin SATA3.0 hard disk port, transmission speed up to 6Gbps,1×mSATA3.0 slot |
| System | Windows 7/Windows 10/Linux |

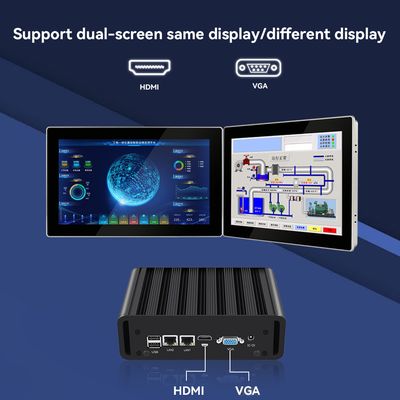

| Display | Integrated Intel HD Graphics 4400 core graphics card,1×VGA port and 1×HDMI display port,Support VGA and HDMI synchronous/asynchronous display |
| Expansion | 1×Mini - PCIe slot, support WIFI/4G module |
| Suitable Temperature | Operation Temperature:0°C ~ 20°C |
This industrial mini PC is designed with a high configuration to meet diverse industrial needs. It features the Intel Core i5 - 5200U processor, with 2 cores and 4 threads, and a maximum turbo boost frequency of 2.7GHz. The device also includes dual LAN ports and six COM ports, making it ideal for applications requiring reliable performance and extensive connectivity options.
Our Industrial Mini PC is applicable for versatile serving numerous application scenarios. It excels in intelligent manufacturing, petroleum and petrochemical, industrial automation, financial institutions, power industry, and transportation industry. In industrial settings, it supports digital signage, multimedia education, turnstile access control systems, and express pickup lockers, offering reliable performance across various sectors.
화면
화면
|
|
| 브랜드 이름: | Helor PC |
| 모델 번호: | x31 i7 4500u |
| MOQ: | 1 조각 |
| 가격: | $134.1-$224.7, Negotiable |
| 포장에 대한 세부 사항: | 상자 상자 |
| 지불 조건: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
The industrial mini PC features an Intel Core i5 - 5200U processor. It has one 204 - pin DDR3 SO - DIMM slot (up to 8GB), one mPCIe slot (for WIFI/4G), and one mSATA + one 12 - pin SATA for storage. It includes dual LAN ports, six COM ports, and six USB ports (4 USB 3.0, 2 USB 2.0). The device supports VGA and HDMI for dual - screen sync, an ALC897 audio codec, and Realtek 8111H Gigabit NICs. Powered by DC4 - pin ATX, it operates in temperatures from 0°C to 20°C and humidity from 5% - 95%, supporting Windows 7/10 and Linux. It has 2 cores, 4 processing threads, and a turbo frequency of 2.7GHz.
| Processor | Compatible with Intel Celeron, Pentium, Core i3/i5/i7 Haswell/Broadwell series processors |
| Memory | 1×SO - DIMM memory slot, supporting single - channel 1600/1333MHz DDR3L 1.35V memory, maximum support 8GB |
| Size | 120mm × 120mm |
| Network | 2×Realtek RTL8111H Gigabit network cards (1 network wake - on - lan), support network wake - up/PXE |
| Storage |
1×7pin SATA3.0 hard disk port, transmission speed up to 6Gbps,1×mSATA3.0 slot |
| System | Windows 7/Windows 10/Linux |
| Display | Integrated Intel HD Graphics 4400 core graphics card,1×VGA port and 1×HDMI display port,Support VGA and HDMI synchronous/asynchronous display |
| Expansion | 1×Mini - PCIe slot, support WIFI/4G module |
| Suitable Temperature | Operation Temperature:0°C ~ 20°C |
This industrial mini PC is designed with a high configuration to meet diverse industrial needs. It features the Intel Core i5 - 5200U processor, with 2 cores and 4 threads, and a maximum turbo boost frequency of 2.7GHz. The device also includes dual LAN ports and six COM ports, making it ideal for applications requiring reliable performance and extensive connectivity options.
Our Industrial Mini PC is applicable for versatile serving numerous application scenarios. It excels in intelligent manufacturing, petroleum and petrochemical, industrial automation, financial institutions, power industry, and transportation industry. In industrial settings, it supports digital signage, multimedia education, turnstile access control systems, and express pickup lockers, offering reliable performance across various sectors.
