| 브랜드 이름: | Helor PC |
| 모델 번호: | x107g 인텔 i7 13650hx |
| MOQ: | 1 조각 |
| 가격: | $520.8-$820.6, Negotiable |
| 배달 시간: | 7-15 근무일 |
| 지불 조건: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
This industrial PC is powered by Intel 13650HX with AMD Vega discrete graphics (4GB VRAM) and supports up to 32GB DDR4 memory. It includes 2 RJ45 Intel i226V network ports (4 optional), 4 USB 3.0, 4 USB 2.0, 6 DB9 COM (4 for RS485/RS422), 4 HDMI 2.0, and 14 GPIO. Storage options consist of 2 M.2 NVMe 2280 (1 with SATA support) + 1 HDD/SSD. Expansion is available through M.2 slots (WIFI/3G/4G/5G) and IO. The system is compatible with Windows 10/11, Linux, and supports watchdog and diskless boot. Constructed from aluminum, it operates in temperatures from -30°C to +70°C, accepts 9-36V input, and offers desktop or wall-mount configurations.
| Processor | Intel I7 13650HX |
| Memory | DDR5 SODIMM *2, Maximum 64GB memory |
| Storage | 2*M.2 NVME 2280 (one of which supports SATA protocol) |
| Network | 2*RJ45 Intel i226V (4 network ports optional)) |
| Power Input | 9 - 36V |
| System Support | Windows 10, Windows 11, Linux |
| Material | Aluminum |
| Dimensions | 252*180*76 mm |
| Weight | TBD |
| Operating Temperature | - 20℃ to + 60℃ |
| Storage temp | - 30℃ to + 70℃ |
Equipped with an Intel Core i7-13650HX processor, this device supports up to 64GB DDR5 memory (via 2×DDR5 SODIMM slots). It features 2×RJ45 Intel i226V network ports (4 optional), rich I/O (2×M.2 NVME 2280 slots, 1 supporting SATA, plus 1×HDD/SSD slot). Compatible with Windows 10, Windows 11, Linux, it has an aluminum build, supports 9-36V input, and operates in -20℃ to +60℃ (storage: -30℃ to +70℃). Desktop or wall-mount installation is available.
Intel I7 13650HX Dual Network Six COM Four HDMI Industrial PC Application:
This industrial PC, powered by the Intel Core i7-13650HX processor, excels in various scenarios with its 4-display and dual-network capabilities. It meets the high-performance needs of intelligent manufacturing for precision control, supports data-driven operations in financial institutions, ensures stable monitoring in the power industry, enables efficient data processing in petroleum and petrochemicals, and aids real-time management in industrial automation and transportation systems.

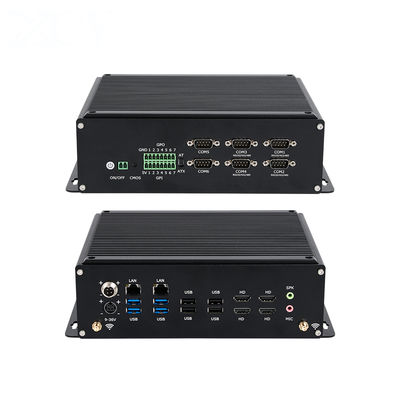

The Intel I7-13650HX industrial PC offers a wide range of interfaces. It includes power-related switches (Power Switch, Clear CMOS Switch), GPIO/AT/ATX ports, 6 COM ports, an aviation power interface, 2.5G LAN, USB 3.0/2.0 ports, 4 HDMI outputs, MIC, and SPK, fulfilling various industrial connection requirements.
화면
화면
화면
화면
화면
화면
화면
|
